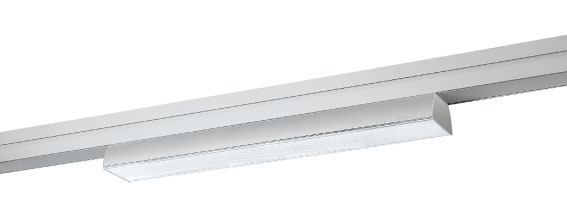

ALUWING TRUNKING SYSTEM |
ALUWING TRUNKING SYSTEM | ALUWING/ALUBAT COMPLETE UNITS | ACCESSORIES
|
Product Code
Aluwing trunking (in length)
3986.1.2000.05: 2m
3986.1.3000.05: 3m
3986.1.4000.05: 4m
3986.1.5000.05: 5m
Aluwing Wing - single light (T5)
3986.2.128.05 - 1x28W 230V G5
3986.2.135.05 - 1x35W 230V G5
3986.2.154.05 - 1x54W 230V G5
3986.2.180.05 - 1x80W 230V G5
Aluwing Wing - double light (T5)
3986.2.228.05 - 2x28W 230V G5
3986.2.235.05 - 2x35W 230V G5
3986.2.254.05 - 2x54W 230V G5
3986.2.280.05 - 2x80W 230V G5
Aluwing Batten - single light (T5)
3984.1.05 - 1x24W 230V G5
3984.3.05 - 1x39W 230V G5
3984.5.05 - 1x54W 230V G5
3984.7.05 - 1x80W 230V G5
Dimmable Batten - Single light (T5)
3984.1.05D - 1x24W 230V G5
3984.3.05D - 1x39W 230V G5
3984.5.05D - 1x54W 230V G5
Aluwing Batten - double light (T5)
3984.2.05 - 2x24W 230V G5
3984.4.05 - 2x39W 230V G5
3984.6.05 - 2x54W 230V G5
3984.8.05 - 2x80W 230V G5
Dimmable Batten - double light (T5)
3984.2.05D - 2x24W 230V G5
3984.4.05D - 2x39W 230V G5
3984.6.05D - 2x54W 230V G5
3984.8.05D - 2x80W 230V G5 |
Technical Description
Modular assembly system that can be customised to create lighting rows in conjunction with specific needs.
The system combines the uniqueness of the Alubat system with our new Aluwing reflector.
Accessories:
High Purity Reflector
- To be used with the Aluwing trunking
Micro prism diffuser
- Polycarbonate prism diffuser to be used with the Aluwing trunking
Trunking cover
- Natural anodised cover
Linear joint |
Colours
 05 Nat. Anodized |
Light Sources
Linear Fluor. T5
Max: 54W/230V/G5
Comes completely wired
Includes integral electronic ballast. |
Technical Characteristics
Flammable
IP 20
Class I
|
 |
| |
ALUWING TRUNKING |
ALUWING TRUNKING
|
|
| |
 |
|
| |
ALUWING
SINGLE AND DOUBLE |
ALUWING SINGLE AND DOUBLE
|
| |
 |
|
| |
ALUWING
BATTEN SINGLE AND DOUBLE & DIMMABLE BATTEN |
ALUWING
BATTEN SINGLE AND DOUBLE
& DIMMABLE BATTEN |
|
|
 |
| |
|
|
| |
|
|
| |
|
